• Height: 6.22mm (Max)
  • Footprint: 10.92mm x 8.00mm (Max)
  • Isat Current Rating: Up to 85A
  • Frequency Range: Up to 1MHz
  • Low Cost Design
  • Suitable for Pick & Place Applications

APPLICATIONS

  • Voltage Regulation Modules
  • High Frequency, High Current Switching Power Supplies
  • Synchronous Buck DC/DC Converters

Electrical Specifications @ 25°C - Operating Temperature Range1: -40°C to +130°C

Part Number
Inductance2 (nH, ±15%)
DCR
(mΩ, ±8%)
ISAT3 (A)
IDC4 (A)
Samples Available
LP08-211
210
0.58
45
38
View
LP08-271
270
0.58
35
38
View
LP08-331
330
0.58
31
38
View
Part Number
ISAT3 (A)
LP08-211
45
View
LP08-271
35
View
LP08-331
31
View

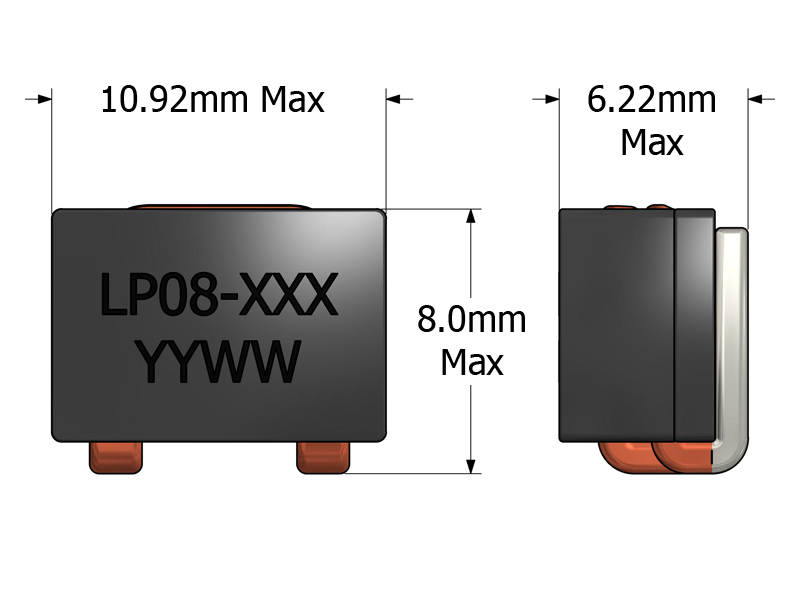

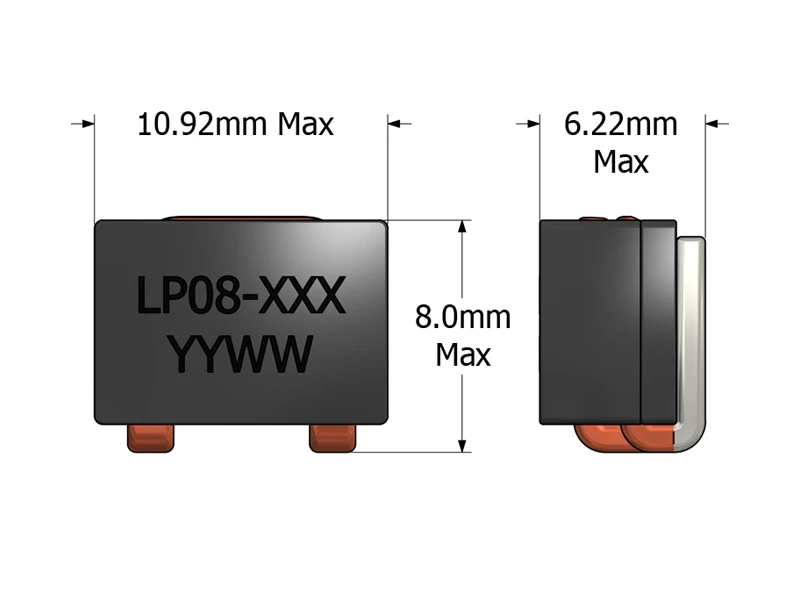

Mechanical Drawing

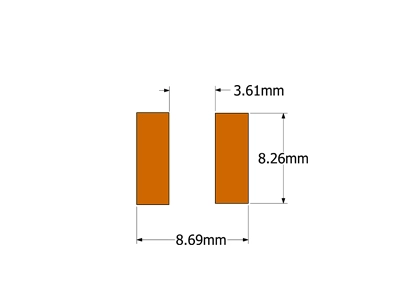

Recommended PCB Layout

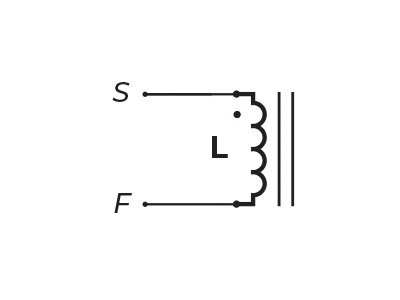

Schematic

  • 1.

    Operating Temp. Range: The combination of ambient temperature and temperature rise.

  • 2.

    Inductance: Tested at 1MHz, 0.1 VRMS.

  • 3.

    ISAT: DC current through the winding to cause a 15% (typ) drop in inductance.

  • 4.

    IDC: DC current through the winding to cause a 40°C (typ) temperature rise at 25°C ambient. PCB layout, trace thickness and width, airflow and proximity to other devices will affect the temperature rise.

  • 5.

    PACKAGING

    • Reel Diameter: 13″
    • Reel Width: 24mm
    • Pieces/Reel: 600

Specifications subject to change without prior notice.
