• Height: 9.2mm (Max)
  • Footprint: 16.0mm x 13.2mm (Max)
  • High Saturation Current to 60A
  • DCR as Low as 0.60mOhms
  • High Energy Storage in a Compact Package
  • Lower DCR than Similar Toroid Design

Applications

  • Desktop CPUs
  • Servers
  • VRMs
  • DC/DC Converters

Electrical Specifications @ 25°C - Operating Temperature Range1: -40°C to +125°C

Part Number
Inductance2
(μH, ±10%)
DCR
(mΩ, Max)
ISAT 3 (ADC)
IDC 4 (ADC)
Dimensions
(X, Y, Z)(mm)
Samples Availability
I02-221-1
0.22
0.60
60
45
12.5, 16.0, 1.8
View
I02-351-1
0.35
0.60
55
45
12.5, 16.0, 1.8
View
I02-451-1
0.45
1.45
50
29
12.7, 15.7, 1.3
View
I02-601-1
0.60
1.45
45
29
12.7, 15.7, 1.3
View
I02-801-1
0.80
2.40
44
23
10.0, 13.0, 1.0
View
I02-102-1
1.00
2.40
35
23
10.0, 13.0, 1.0
View
I02-132-1
1.30
3.00
34
19
11.0, 14.0, 1.0
View
I02-152-1
1.50
3.00
25
19
11.0, 14.0, 1.0
View
I02-182-1
1.80
3.00
20
19
11.0, 14.0, 1.0
View
Part Number
Inductance2
(μH, ±10%)
I02-221-1
0.22
View
I02-351-1
0.35
View
I02-451-1
0.45
View
I02-601-1
0.60
View
I02-801-1
0.80
View
I02-102-1
1.00
View
I02-132-1
1.30
View
I02-152-1
1.50
View
I02-182-1
1.80
View

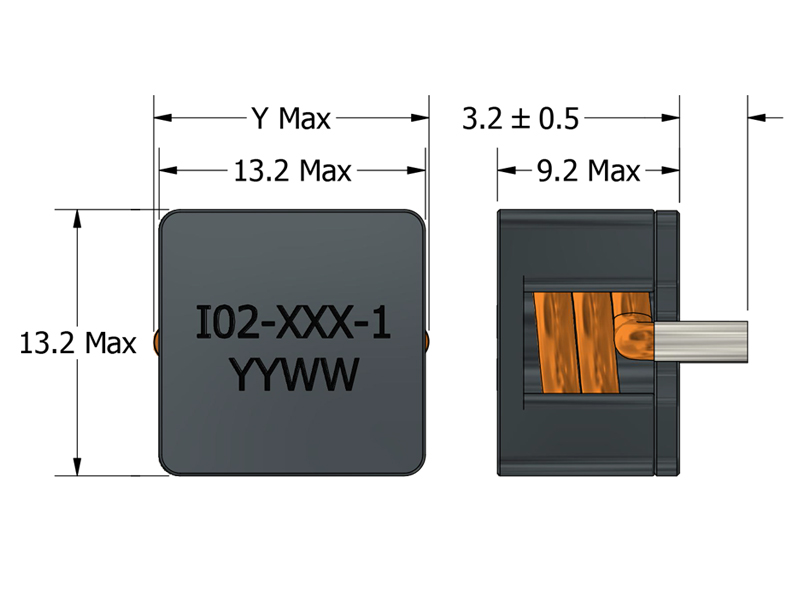

Mechanical Drawing

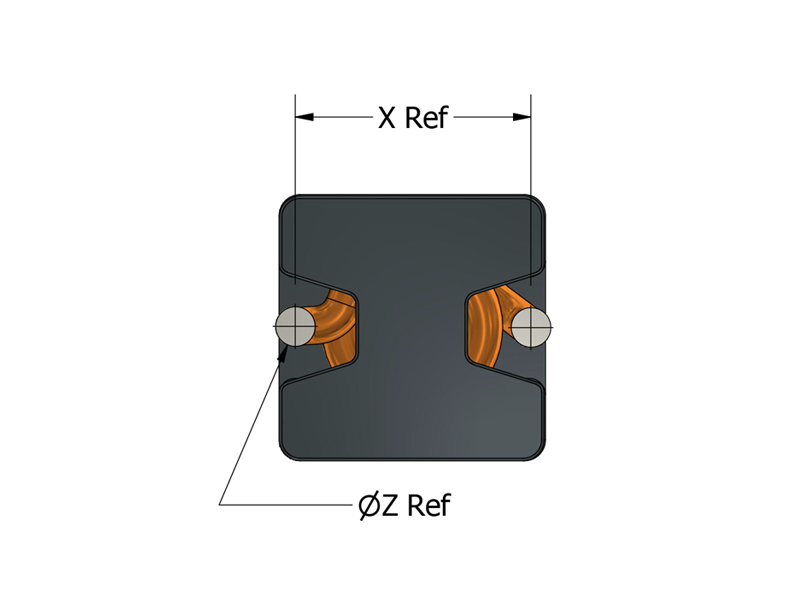

Footprint

Schematic

  • 1.

    Operating Temperature Range: The combination of ambient temperature and temperature rise.

  • 2.

    Inductance: Tested at 100kHz, 0.1 VRMS, 0ADC Bias.

  • 3.

    ISAT: DC current through the winding to cause a 15% (typ) drop in inductance.

  • 4.

    IDC: DC current through the winding to cause a 40°C (typ) temperature rise at 25°C ambient.

  • 5.

    Flammability Standard: Meets UL 94V-0.

  • 6.

    Packaging

    • Pieces/Tray: 130
    • Trays/Box: 16
    • Pieces/Box: 2080

Specifications subject to change without prior notice.
